Model 32 Strain Wave Gear Box High Precision Harmonic Drive

	Strain wave reducers (harmonic drives) are essential components in modern mechanical systems requiring high precision, compact size, and high torque transmission. Their unique design, which leverages the deformation of the flexspline and the precise engagement of gear teeth, makes them ideal for applications in robotics, aerospace, and various industrial fields.
	Application Robotics Used in robotic arms and joints for precise movement control. Aerospace Employed in various aircraft systems where space and weight constraints are critical. Industrial Machinery Utilized in CNC machines, automated production lines, and other precision-driven equipment.

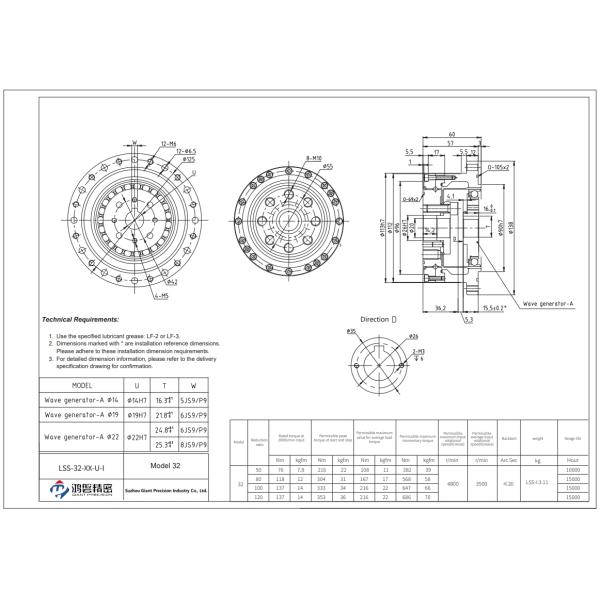

Parameter Table

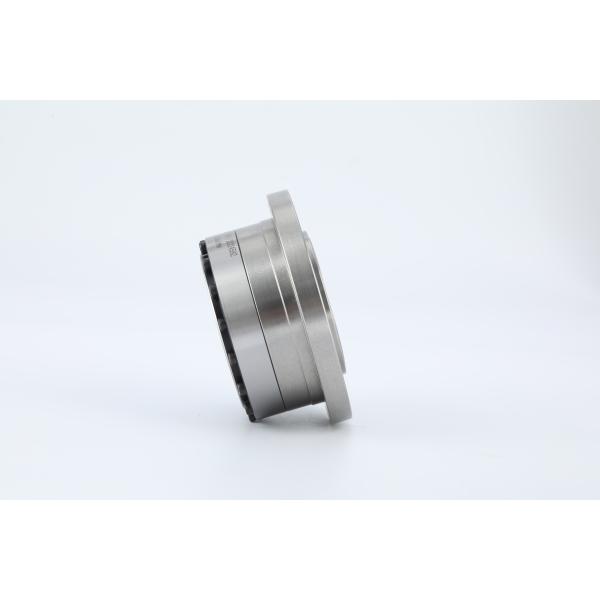

Detailed Images

	Key Attributes of LSS - I Model 32 Harmonic Gear Units
	Product	Model 32 Harmonic Drive
	Material	Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
	Reduction Ratio	50:1, 80:1, 100:1, 120:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	3500 r/min
	Max Input Speed	4800 r/min
	Design Life	15000 hours
	Model	32
	Weight	3.11 kg
	Warranty	1 Year

Suzhou Giant Precision Industry Co., Ltd. is a technical-service enterprise specializing in keeping on researching core technologies and developing high precision transmission products. We mainly provide strain wave reducers, RV reducers, rotary actuator, planetary reducers, electric grippers.

Currently, our products have been widely used in a variety of industrial sectors, such as manipulator, industrial robots, CNC machine tool, printing equipment, textile machine, packaging machinery, non-standard automation, medical equipment, laser cutting, welding, automobile manufacturing, satellite communications, metal processing, pharmaceutical industry, etc.

Our mission is to adhere to our service philosophy, put customer value in our first place, to provide high-quality products, professional technical support and diverse services.
