High Accuracy Gears LSN - II Series Model 20 Lightweight Strain Wave Reducer

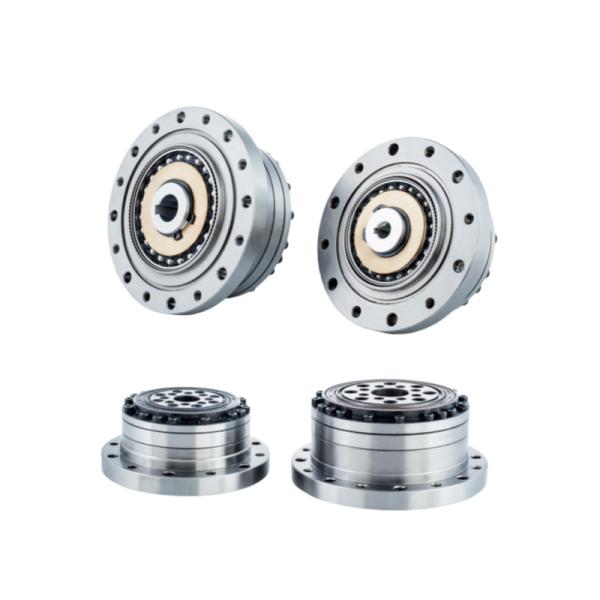

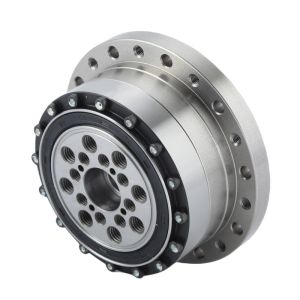

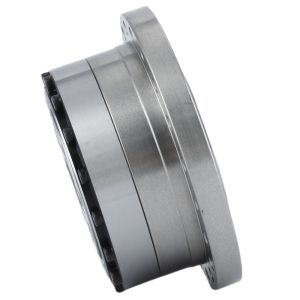

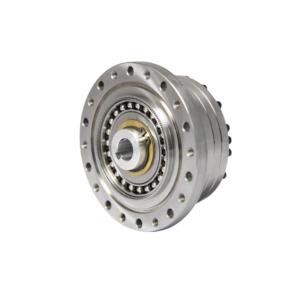

LSN series are high torque housed component gear set combined with a precision cross roller output bearing & flange. It is a very compact, robust and easy to use gearhead solution. The LSN II series is available in 5 sizes with ratios 50:1 to 160:1. If your application does not require high torque, LSN series gearhead is a great alternative gearhead. There is also a lightweight version.

LSN series is the lightweight product line, designed to reduce the weight of the mechanical equipment itself and facilitate the lightweight construction of industrial robots. It enables higher speeds and increased payload capacity for industrial robots.

How it Works

The Flexspline is slightly smaller in diameter and has two fewer teeth than the Circular Spline. The elliptical shape of the Wave Generator causes the teeth of the Flexspline to engage the Circular Spline at two opposite regions across the major axis of the ellipse. For every 180 degree clockwise rotation of the Wave Generator the Flexspline teeth are advanced counterclockwise by one tooth in relation to the Circular Spline. Each complete clockwise rotation of the Wave Generator results in the Flexspline moving counter-clockwise by two teeth from its original position relative to the Circular Spline.

Key Features Zero Backlash Peak Torque at Start and Stop: 56Nm to 92Nm Reduction ratios 50:1 to 160:1 30% average lower weight than Standard Series High torsional stiffness High efficiency Compact and simple design Robust cross roller output bearing Output flange for direct mounting of load

Advantages

Specification Sheet

Drawing

	Key Attributes of LSN - II Model 20 Harmonic Reudcer
	Product	Model 20 Harmonic Drive Units
	Components	Wave Generator, Flexspline, Circular Spline
	Reduction Ratio	50:1, 80:1, 100:1, 120:1, 160:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	3500 r/min
	Max Input Speed	6500 r/min
	Design Life	15000 hours
	Model	20
	Weight	0.73 kg
	Warranty	1 Year

Suzhou Giant Precision Industry Co., Ltd. is a technical-service enterprise specializing in keeping on researching core technologies and developing high precision transmission products. We mainly provide strain wave reducers, RV reducers, rotary actuator, planetary reducers, electric grippers.

Currently, our products have been widely used in a variety of industrial sectors, such as manipulator, industrial robots, CNC machine tool, printing equipment, textile machine, packaging machinery, non-standard automation, medical equipment, laser cutting, welding, automobile manufacturing, satellite communications, metal processing, pharmaceutical industry, etc.

Our mission is to adhere to our service philosophy, put customer value in our first place, to provide high-quality products, professional technical support and diverse services.
