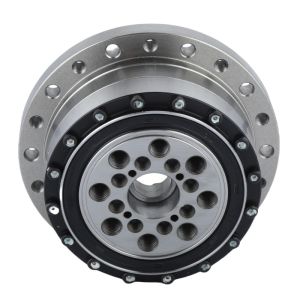

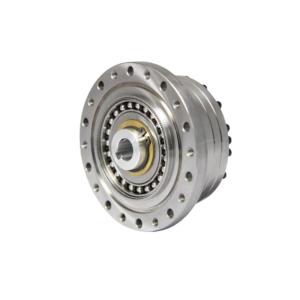

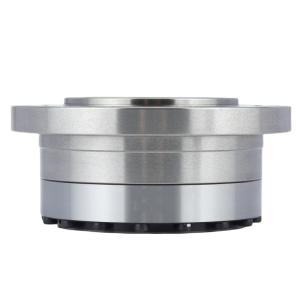

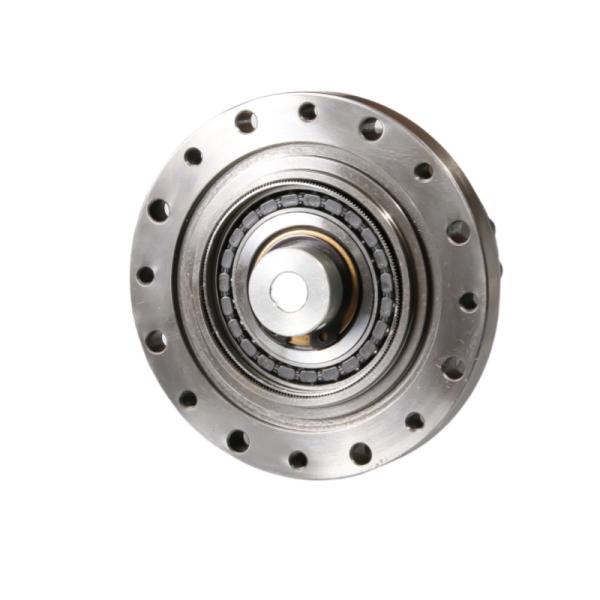

Name: Model 32 Harmonic Reducer Drive gear Control Strain Wave ODM
Brand: Giant Precision
Price: 1 USD

Add to Cart

Strain wave reducers are used in various applications requiring high precision and reliability, including:

Robotics: For precise joint movement and positioning.
Aerospace: In control systems where reliability and precision are critical.
Medical Equipment: Such as surgical robots where accurate movements are crucial.
Industrial Machinery: For high-precision motion control in automation and manufacturing processes.

Model		32
Reduction ratio		50	80	100	120
Rated torque at 2000r/min input	Nm	76	118	137	137
Rated torque at 2000r/min input	kgfm	7.8	12	14	14
Permissible peak torque at start and stop	Nm	216	304	333	353
Permissible peak torque at start and stop	kgfm	22	31	34	36
Permissible maximum value for average load torque	Nm	108	167	216	216
Permissible maximum value for average load torque	kgfm	11	17	22	22
Permissible maximum momentary torque	Nm	382	568	647	686
Permissible maximum momentary torque	kgfm	39	58	66	70
Permissible maximum input rotational speed (Grease)	r/min	4800
Permissible average input rotational speed (Grease)	r/min	3500
Backlash	Arc Sec	≤20
Weight	kg	3.11
Design life	Hour	10000	15000	15000	15000

	Key Attributes of LSS - II Model 32 Harmonic Gear Units
	Product	Model 32 Harmonic Drive
	Components	Wave Generator, Flexspline, Circular Spline
	Reduction Ratio	50:1, 80:1, 100:1, 120:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	4800 r/min
	Max Input Speed	3500 r/min
	Design Life	15000 hours
	Model	32
	Weight	3.11 kg
	Warranty	1 Year
