High Torsional Strain Wave Gear Boxes Reducer Harmonic Drive Generator Units

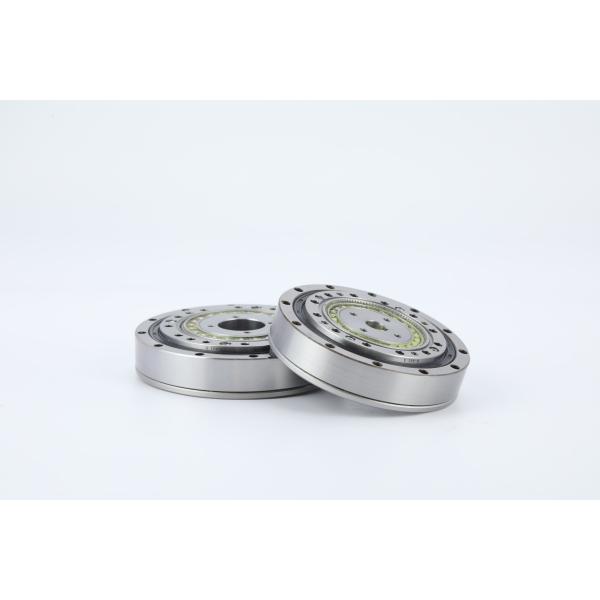

High Torsional Stiffness LHT - I Series Harmonic Drive Gearbox

Product Description

LHT - I series flexspline has a hollow flanged standard cylinder structure, using uni-body type wave generator.

This harmonic reducer has a compact structure. The input shaft directly matches the inner hole of the wave generator and is connected through a flat key. It can be used in the connection mode of fixing the rigid spline end and outputting the flexspline end; it can also be used in the connection mode of fixing the flexspline end and outputting the rigid spline end.

LHT - I series gear units can be widely used in robots, humanoid robots, semiconductor manufacturing equipment, FPD manufacturing equipment, and glass ceramic manufacturing equipment.

Key Features

Compact and concise design
Input and output coaxial
Zero backlash
Reduction ratios 50:1 to 160:1
High efficiency
Motor direct drive
Excellent positioning accuracy and rotational precision

Rated Parameters Table of LHT - I series

Model	Reduction ratio	Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Permissible maximum input rotational speed (Grease)	Permissible average input rotational speed (Grease)	Backlash	Weight	Design life
		Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Permissible maximum input rotational speed (Grease)	Permissible average input rotational speed (Grease)	Backlash	Weight	Design life
		Nm	kgfm	Nm	kgfm	Nm	kgfm	Nm	kgfm	r/min	r/min	Arc Sec	kg	Hour
14	50	5.4	0.55	18	1.8	6.9	0.7	35	3.6	8500	3500	≤20	0.4	10000
	80	7.8	0.8	23	2.4	11	1.1	47	4.8					15000
	100	7.8	0.8	28	2.9	11	1.1	54	5.5					15000
	120	7.8	0.8	28	2.9	11	1.1	54	5.5					15000
17	50	16	1.6	34	3.5	26	2.6	70	7.1	7300	3500	≤20	0.54	10000
	80	22	2.2	43	4.4	27	2.7	87	8.9					15000
	100	24	2.4	54	5.5	39	4	110	11					15000
	120	24	2.4	54	5.5	39	4	86	8.8					15000
20	50	25	2.5	56	5.7	34	3.5	98	10	6500	3500	≤20	0.72	10000
	80	34	3.5	74	7.5	47	4.8	127	13					15000
	100	40	4.1	82	8.4	49	5	147	15					15000
	120	40	4.1	87	8.9	49	5	147	15					15000
	160	40	4.1	92	9.4	49	5	147	15					15000
25	50	39	4	98	10	55	5.6	186	19	5600	3500	≤20	1.22	10000
	80	63	6.4	137	14	87	8.9	255	26					15000
	100	67	6.8	157	16	108	11	284	29					15000
	120	67	6.8	167	17	108	11	304	31					15000
32	50	76	7.8	216	22	108	11	382	39	4800	3500	≤20	2.54	10000
	80	118	12	304	31	167	17	568	58					15000
	100	137	14	333	34	216	22	647	66					15000
	120	137	14	353	36	216	22	686	70					15000
40	50	137	14	402	41	196	20	686	70	4000	3000	≤20	4.4	10000
	80	206	21	519	53	284	29	980	100					15000
	100	265	27	568	58	372	38	1080	110					15000
	120	294	30	617	63	451	46	1180	120					15000

Detailed Images

Key Attributes of LHT - I Harmonic Gears
Product	Motor Direct Drive Strain Wave Reducer
Material	Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
Reduction Ratio	50:1 to 160:1
Backlash	Less than 20 Arc Sec
Average Input Speed	3500 r/min
Max Input Speed	8500 r/min
Design Life	15000 hours
Model	14, 17, 20, 25, 32, 40
Weight	0.4 to 4.4 kg
Warranty	1 Year

Applications


Industrial Robots	Medical Devices	CNC Machines

PDF Drawings Download

LHT-14-XX-U-I.pdf LHT-17-XX-U-I.pdf LHT-20-XX-U-I.pdf

LHT-25-XX-U-I.pdf LHT-32-XX-U-I.pdf LHT-40-XX-U-I.pdf
