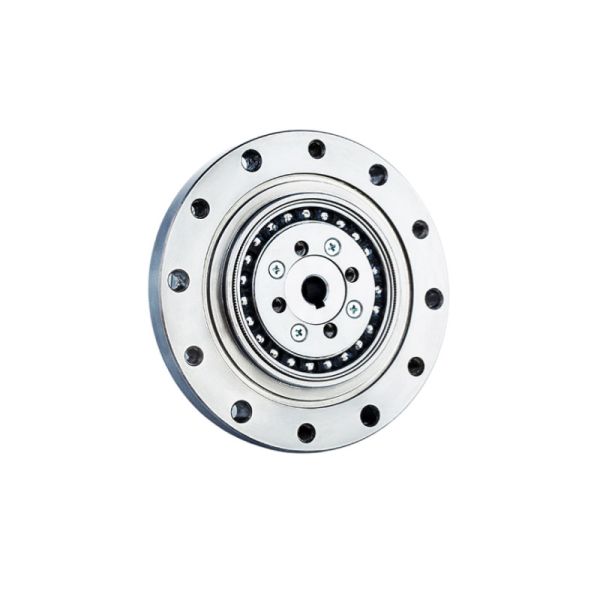

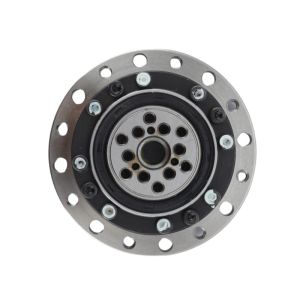

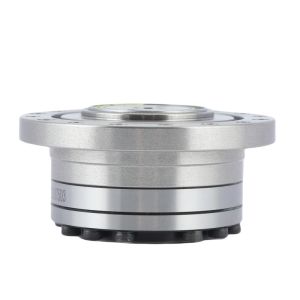

8500r/min Zero Backlash Reducer Strain Wave Drive Harmonic Gear

	Wave Generator is an elliptical-shaped cam, typically fitted with ball bearings, which is placed inside the flexspline. As it rotates, it causes the flexspline to deform into an elliptical shape.
	Flexspline is a thin-walled, flexible cylindrical component with external teeth. It fits inside the circular spline and deforms into an elliptical shape due to the wave generator. The flexspline has fewer teeth than the circular spline.
	Circular Spline This is a rigid circular ring with internal teeth that mesh with the external teeth of the flexspline.

Parameter Table

Key Attributes of LSS - I Series Model 14 Harmonic Gear Units
Product	Harmonic Gear Units
Material	Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
Reduction Ratio	50:1, 80:1, 100:1, 120:1
Backlash	Less than 20 Arc Sec
Average Input Speed	3500 r/min
Max Input Speed	8500 r/min
Design Life	15000 hours
Model	14
Weight	0.51 kg
Warranty	1 Year

Applications

CNC Machines	Semiconductor system	Industrial Robots

Suzhou Giant Precision Industry Co., Ltd. is a technical-service enterprise specializing in keeping on researching core technologies and developing high precision transmission products. We mainly provide strain wave reducers, RV reducers, rotary actuator, planetary reducers, electric grippers.

Currently, our products have been widely used in a variety of industrial sectors, such as manipulator, industrial robots, CNC machine tool, printing equipment, textile machine, packaging machinery, non-standard automation, medical equipment, laser cutting, welding, automobile manufacturing, satellite communications, metal processing, pharmaceutical industry, etc.

Our mission is to adhere to our service philosophy, put customer value in our first place, to provide high-quality products, professional technical support and diverse services.
