Industrial Robot Strain Wave Drive Reducer Harmonic Gear Motor Direct Drive

Product Categories

Suzhou Giant Precision Industry Co., Ltd.

Contact Now

Industrial Robot Strain Wave Drive Reducer Harmonic Gear Motor Direct Drive

Ask Lasest Price
Brand Name :	Giant Precision
Model Number :	LSS-25-XX-U-I
Certification :	ISO9001
Price :	To Be Negotiated
Payment Terms :	T/T
Supply Ability :	20000 Sets per Month
Delivery Time :	3-4 Weeks

Add to Cart

Product Details
Company Profile

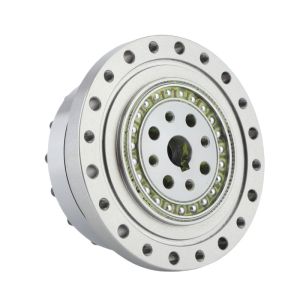

Industrial Robot Strain Wave Drive Reducer Harmonic Gear Motor Direct Drive

Strain wave reducers (harmonic drives)

are essential components in many modern mechanical systems, providing efficient, precise, and reliable gear reduction. Their unique design and capabilities make them indispensable in fields requiring high precision and compact, lightweight solutions.

Application

Robotics Used in robotic arms and joints for precise movement control.
Aerospace Employed in various aircraft systems where space and weight constraints are critical.
Industrial Machinery Utilized in CNC machines, automated production lines, and other precision-driven equipment.

Model		25
Reduction ratio		50	80	100	120
Rated torque at 2000r/min input	Nm	39	63	67	67
Rated torque at 2000r/min input	kgfm	4	6.4	6.8	6.8
Permissible peak torque at start and stop	Nm	98	137	157	167
Permissible peak torque at start and stop	kgfm	10	14	16	17
Permissible maximum value for average load torque	Nm	55	87	108	108
Permissible maximum value for average load torque	kgfm	5.6	8.9	11	11
Permissible maximum momentary torque	Nm	186	255	284	304
Permissible maximum momentary torque	kgfm	19	26	29	31
Permissible maximum input rotational speed (Grease)	r/min	5600
Permissible average input rotational speed (Grease)	r/min	3500
Backlash	Arc Sec	≤10
Weight	kg	1.46
Design life	Hour	10000	15000	15000	15000

	Key Attributes of LSS - I Model 25 Harmonic Gear Units
	Product	Model 25 Strain Wave Reducer
	Material	Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
	Reduction Ratio	50:1, 80:1, 100:1, 120:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	3500 r/min
	Max Input Speed	5600 r/min
	Design Life	15000 hours
	Model	20
	Weight	1.46 kg
	Warranty	1 Year
