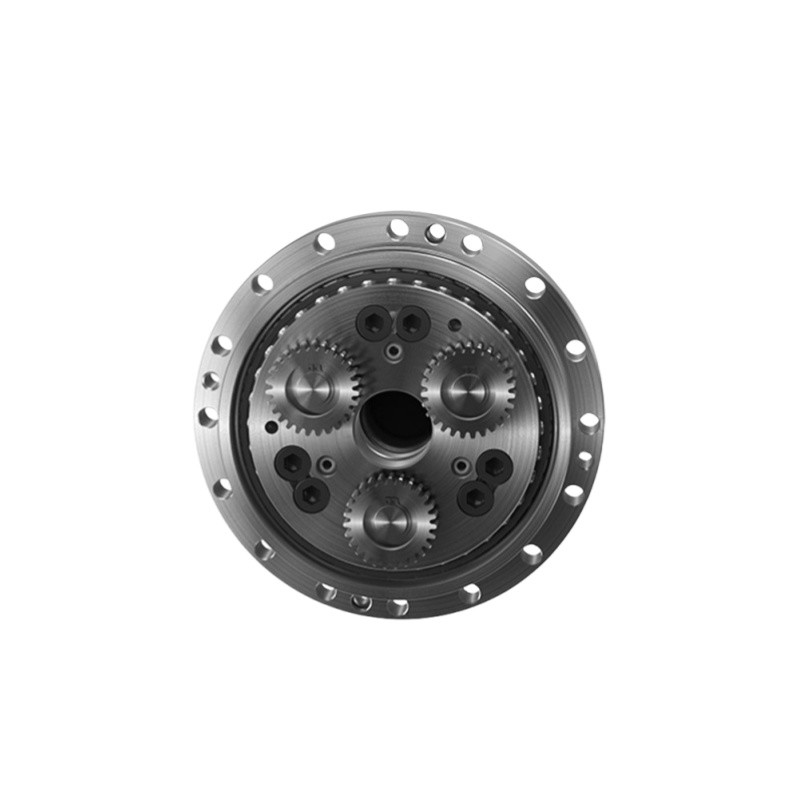

Name: Compact Cycloidal Pinwheel Reducer RV Reduction Robot Planetary Gearbox
Brand: Giant Precision
Price: 1 USD

Add to Cart

RV Reduction Gears RV - N Reducer

commonly known as an RV gear, is a type of precision gearbox designed for applications requiring high torque capacity, precision, and durability.

Specifications

Parameters table of RV - N series

Model	Standard ratio	Rated torque	Rated output speed	Design life	Allowable acceleration/ deceleration torque	Momentary max. allowable torque	Backlash	Lost motion	Allowable bending torque	Momentary max. allowable bending torque	Allowable radial load	Weight
		(Nm)	(rpm)	(h)	(Nm)	(Nm)	(arc.min.)	(arc.min.)	(Nm)	(Nm)	(N)	(Kg)
BX25N	41	245	15	6000	612	1225	1	1	784	1568	6975	3.8
	81
	107.66
	126
	137
	164.07
BX42N	41	412	15	6000	1029	2058			1660	3320	12662	6.3
	81
	105
	126
	141
	164.07
BX80N	41	784	15	6000	1960	3920			2150	4300	14163	9.3
	81
	101
	129
	141
	171
BX125N	41	1225	15	6000	3062	6125			3430	6860	19804	13.9
	81
	102.17
	121
	145.61
	161
	179.18
BX160N	41	1600	15	6000	4000	8000			4000	8000	20619	22.1
	81
	102.81
	125.21
	156
	201
BX500N	81	4900	15	6000	12250	24500			11000	22000	40486	57.2
	105
	123
	144
	159
	192.75

Key Attributes

Key Attributes of RV - N Series Compact RV Reduction Gears
Product	Hollow Shaft RV Reducer
Material	Steel, Aluminum
Torsional Rigidity	421 to 24500 Nm/arc.min.
Rated output speed	15 r/min
Backlash	MAX. 1 Arc.min.
Momentary max. allowable torque	1225 to 24500 Nm
Model	BX25N, BX42N, BX80N, BX100, BX125N, BX160N, BX500N
Weight	3.8 to 57.2kg
Design life	6000 hours
Application	Robotics, CNC machining, Automated manufacturing systems
Feature	High torque capacity, Minimal backlash, Durable performance
Warranty	1 year

Application

Compact Cycloidal Pinwheel Reducer RV Reduction Robot Planetary Gearbox
